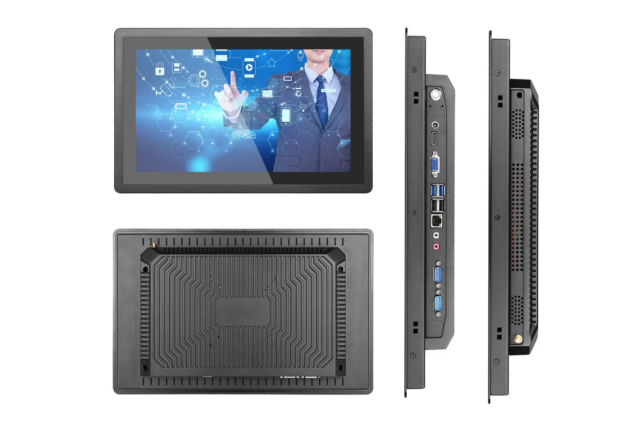

13.3'' IPCT-I3RD Touch Screen
|
LCD panel( IPS screen) |
|
|
Panel size |
13.3” (16:9) |
|
Native Resolution |
1920*1080 |
|
Brightness (cd/m²) |
350-400nits(1000nitsoptional) |
|
Contrast ratio |
1000:1 |
|
View angle |
89°/89°/89°/89° (R/L/U/D) |
|
Touch panel |
|
|
Touchscreen Type |
10 points Projected capacitive touch |
|
Touch Interface |
USB |
|
Ports |
|
|
VGA |
1×VGA |
|
USB |
4xUSB for touch |
|
HDMI |
1xHDMI |
|
DVI |
1XDVI |
|
LAN |
x1 (x2,x3 optional) |
|
EAR |
x1EAR |
|
RS232 |
x2(x4,x6 optional) |
|
MIC |
x1MIC |
|
WIFI |
x1WIFI |
|
PowerDC12V |
x1(power24Voptionaladdaregulator9-36V) |
|
OSD |
|
|
OSD control |
Brightness, contrast ratio, auto adjustment, H/V position, language select etc. |
|
Support OS |
Windows XP , Windwows /7/8/10 , Linux, Mac OS X, Android, Raspberry Pi ect |
|
Power Supply |
|
|
External Power Supply |
AC 100 - 240V |
|
Working voltage |
DC 12V |
|
Power consumption |
≤30W |
|
Operating Environment |
|
|
Temperature Range |
operating: -10 to 60°C, storage :-20 to 70°C |
|
Relative humidity |
5%~95%@40°C,non-condensing |
|
Packing Details |
|
|
Packing detail |
2panelPCinonecarton |
|
Accessories |
Poweradapter, Wifiantenna |
