• 212 x 165 x 63 mm low-profile design
• Intel® 14/13/12th-Gen Core™ 35W/ 65W LGA1700 CPU
• Rugged, -25°C to 60°C fanless operation
• 4x 2.5GbE with optional PoE+ and 4x USB3.2 Gen 1 with screw-lock
• M.2 2280 Gen4x4 NVMe and 1x hot-swappable HDD tray for storage
• 4-CH isolated DI and 4-CH isolated DO
• VGA + DP dual display outputs
• Optional ignition power control

Introduction

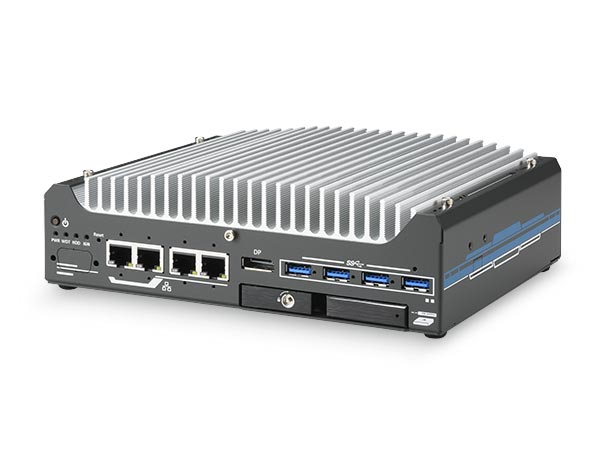

Nuvo-9531 is one of the most compact fanless embedded computers based on the Intel 14th/13th/12th-Gen platform. Measuring just 212 x 165 x 63 mm, it can fit into restricted spaces, such as in robotic arm and AMR applications. Despite its compact size, Nuvo-9531 does not compromise on performance. Built on the advanced Intel 7 process, Intel 14th Gen processors have up to 24 cores/ 32 threads to deliver up to 2x the performance when compared to previous Intel 10th or 11th Gen platforms. Nuvo-9531 is a compact fanless embedded computer that offers the ultimate computing for various industrial applications.

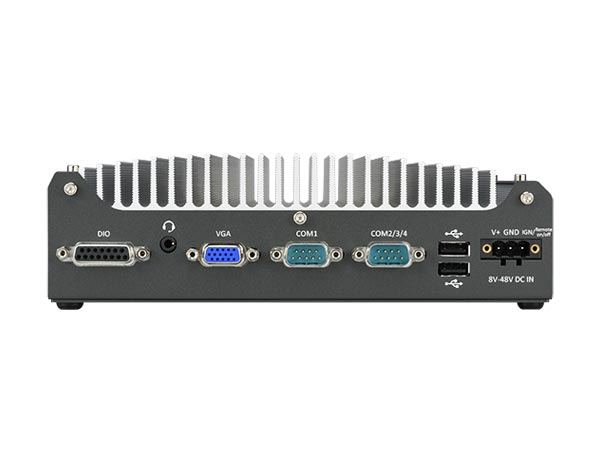

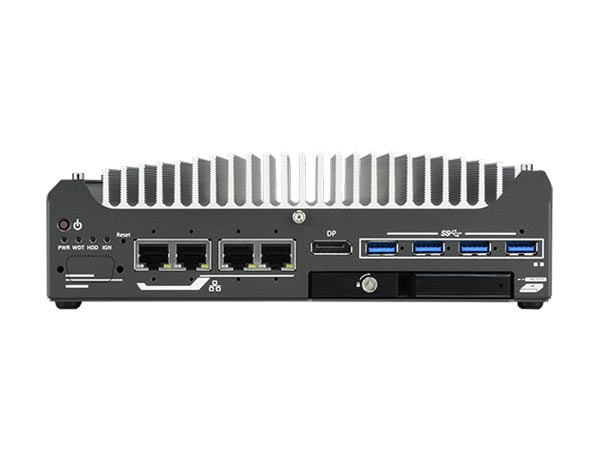

Nuvo-9531 has rich I/O functions. It features four 2.5GbE with optional PoE+ PSE and four USB3.2 Gen1 ports for multiple camera connectivity for machine vision and surveillance applications. In addition, it features a Gen4 x4 M.2 NVMe slot for the latest NVMe SSDs that supports read/ write speeds up to 7000 MB/s; a hot-swappable HDD tray to hot-swap the storage drive without turning off the system or dismantling the chassis; two mPCIe and one M.2 E key slots to install WiFi or 5G/ 4G wireless communication modules. The system is also equipped with 8x DIO, 2x COM ports, and dual display outputs for your industrial embedded application needs.

As a compact embedded computer, Nuvo-9531 delivers excellent computing performance and offers an abundance of I/O connections. It is suitable for a variety of industrial applications, especially when installation space is limited.
