MVL-RI10000W-UV UV Light
Product Features：
◆Standard products of 365nm and 375nm are provided.
◆Glass package LED, long lifecycle.
◆Standard products of 365nm and 375nm are provided.
◆Glass package LED, long lifecycle.
◆Wide irradiation with large radiation range and uniform illumination,narrow irradiation with concentrated light, long irradiation and high radiation intensity.
◆Diffuser plate is optional to improve image uniformity.
Application Cases：
◆Banknote/ticket inspection
◆Fluorescent material inspection
◆Fluorescent OCR,barcodes and QR codes reading Recognition
◆Minor housing scratches and damage detection
◆UV glue inspection
◆Fluorescent material inspection
◆Fluorescent OCR,barcodes and QR codes reading Recognition
◆Minor housing scratches and damage detection
◆UV glue inspection
| Model | MVL-RI10000W-UV |
|---|---|
| Color | Ultraviolet(365mm) |
| Output | 24V/27.5W |
| Channels | 1 |
| Emitting Size（Diameter） | 100 |
| Recommended Controller | MVL-PS24-2CH, MVL-PS24-4CH |

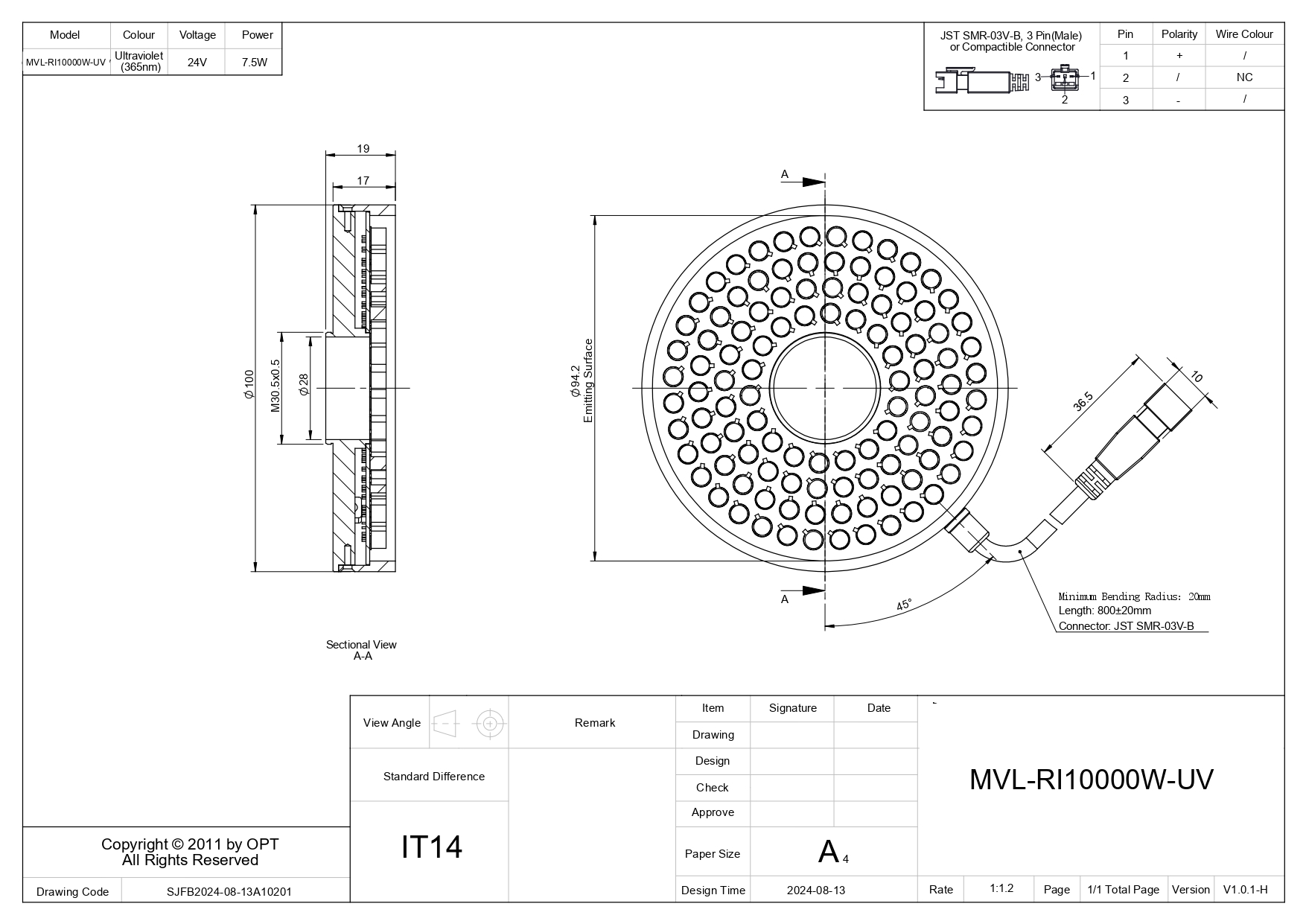

Dimensions(mm)
