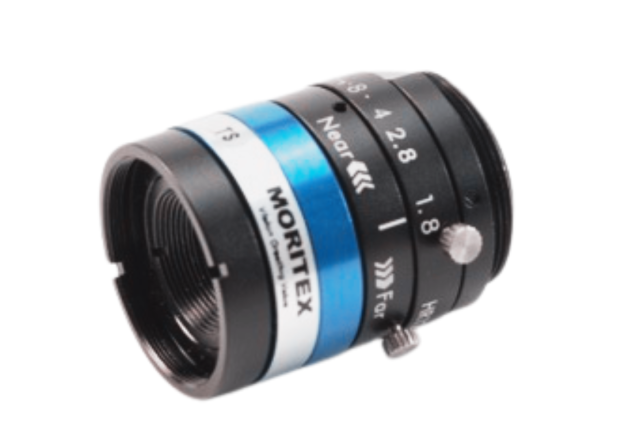

SR Series
A vibration-resistant, compact designed lens for high-resolution sensors, up to 1.1" with a pixel size of 2.74 μm, along with an AR coating, transmitting visible to NIR (400–1000 nm).

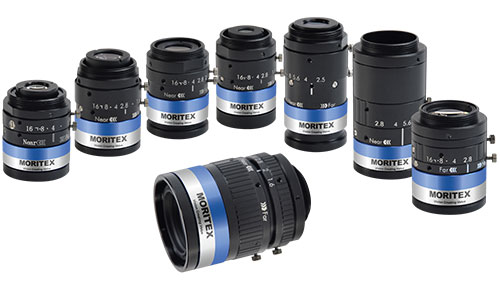

Standard and Large Format Lenses
Moritex standard and large format lenses provide flexible optical solutions for a range of applications. These lenses are compatible with different camera types, from low-resolution models to advanced area scan and line scan cameras with over 16 MP resolutions. This ensures optimal performance in various imaging scenarios and manufacturing environments.
SR Series C-Mount Design
A vibration-resistant, compact designed lens for high-resolution sensors, up to 1.1" with a pixel size of 2.74 μm, along with an AR coating, transmitting visible to
NIR (400–1000 nm).
| Product ID | Focal Length |
F No. | Max. Sensor Size |
Min. WD |
Dimensions O.D. x Lens Tube Length (mm) |
| LMC-ML-U0817SR | 8 mm | f/1.7–f/16 | 1.1" (17.6 mm) |
100 mm | ø 58 x 77 |
| LMC-ML-U1217SR | 12 mm | f/1.7–f/16 | 100 mm | ø 39.5 x 65.5 | |
| LMC-ML-U1615SR | 16 mm | f/1.5–f/16 | 100 mm | ø 39.5 x 67 | |
| LMC-ML-U2515SR | 25 mm | f/1.5–f/16 | 100 mm | ø 42 x 67 | |
| LMC-ML-U3518SR | 35 mm | f/1.8–f/16 | 195 mm | ø 39.5 x 54.5 | |
| LMC-ML-U5022SR | 50 mm | f/2.2–f/16 | 300 mm | ø 39.5 x 58.5 |
