XCL (IDS uEye XC + MVL Lighting)
Key Feature
-
Compact design and small in size.
-
Adopts multiple IO interfaces and plug-in power interface.
-
Supports multiple communication protocols, including TCP, Serial, FTP, Profinet, Ethernet/IP, MELSEC/SLMP, etc.
-
Mounting holes on panels for flexible mounting from 4 sides.
- Can work Many surface levels because it has auto focus.
| Camera | |
|---|---|
| Item number |
|
| Camera family | XC |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | onsemi |
| Frame rate @ resolution max. | 20.0 fps |
| Resolution (h x v) | 4200 x 3120 |
| Optical Area | 4.620 mm x 3.432 mm |
| Shutter | Rolling Shutter |
| Optical class | 1/3.2" |
| Resolution | 13.10 MPix |
| Pixel size | 1.10 µm |
| IP code | IP30 |
| Sensor model | AR1335 |
| Product Life Cycle | Series |
| LIghting | |
| Item number |
|
| Color | White, Red |
| Output | 24V |
| Channels | 1 |
| Housing Size (Length) |
61 |
| Recommended Controller |
MVL-PS24V-2CH |

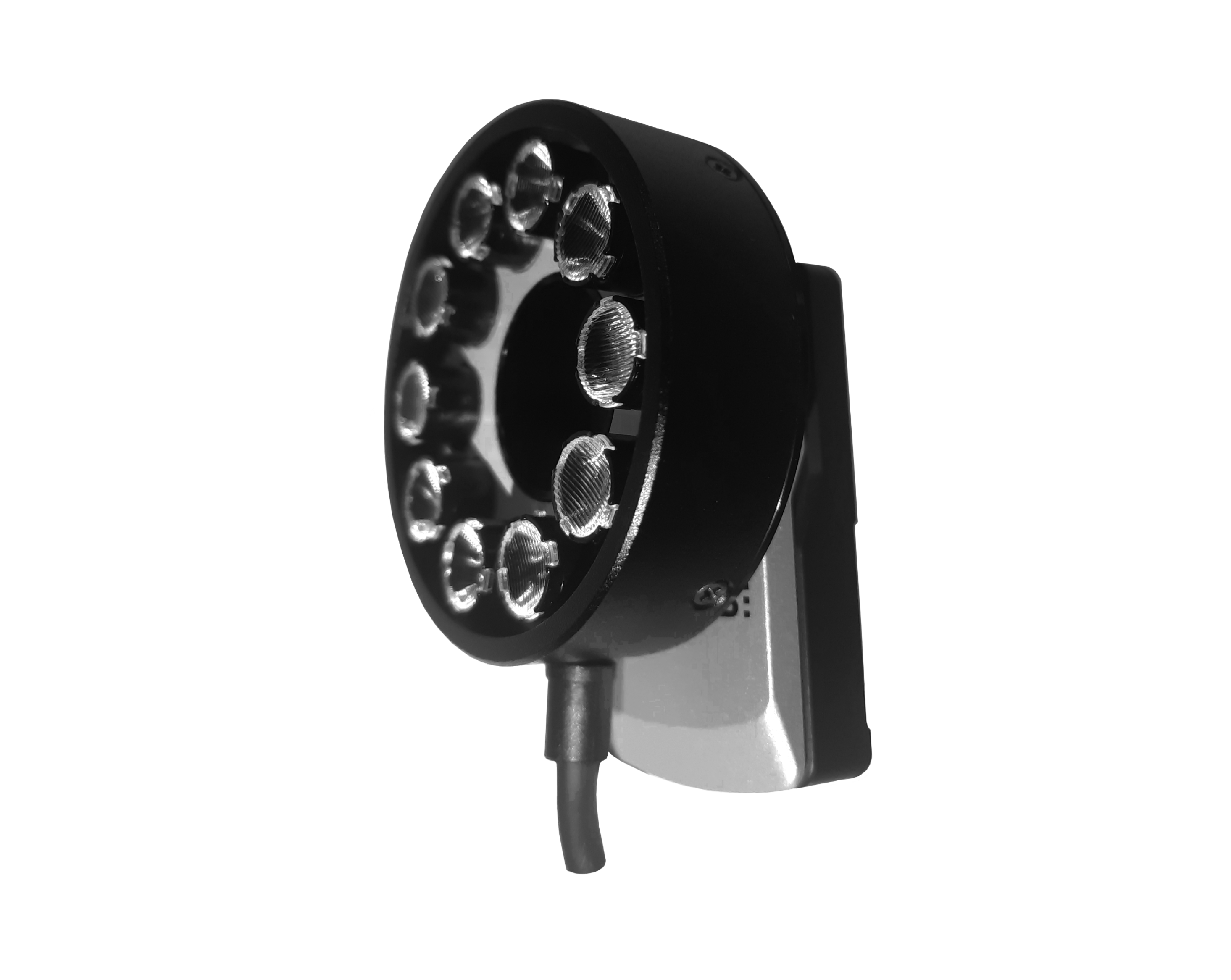

Product Preview

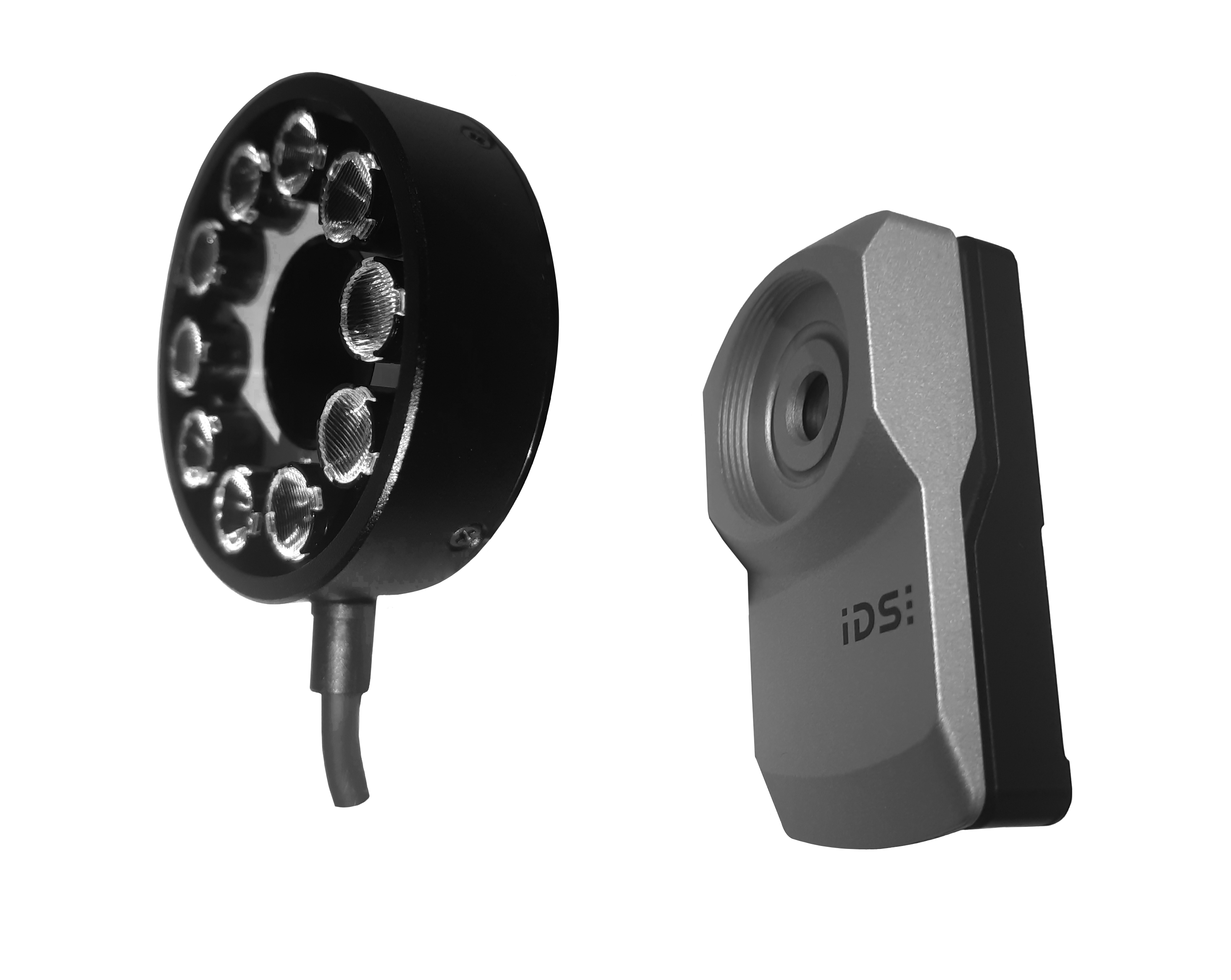

Unbox uEye XC
Install Lighting to uEye XC

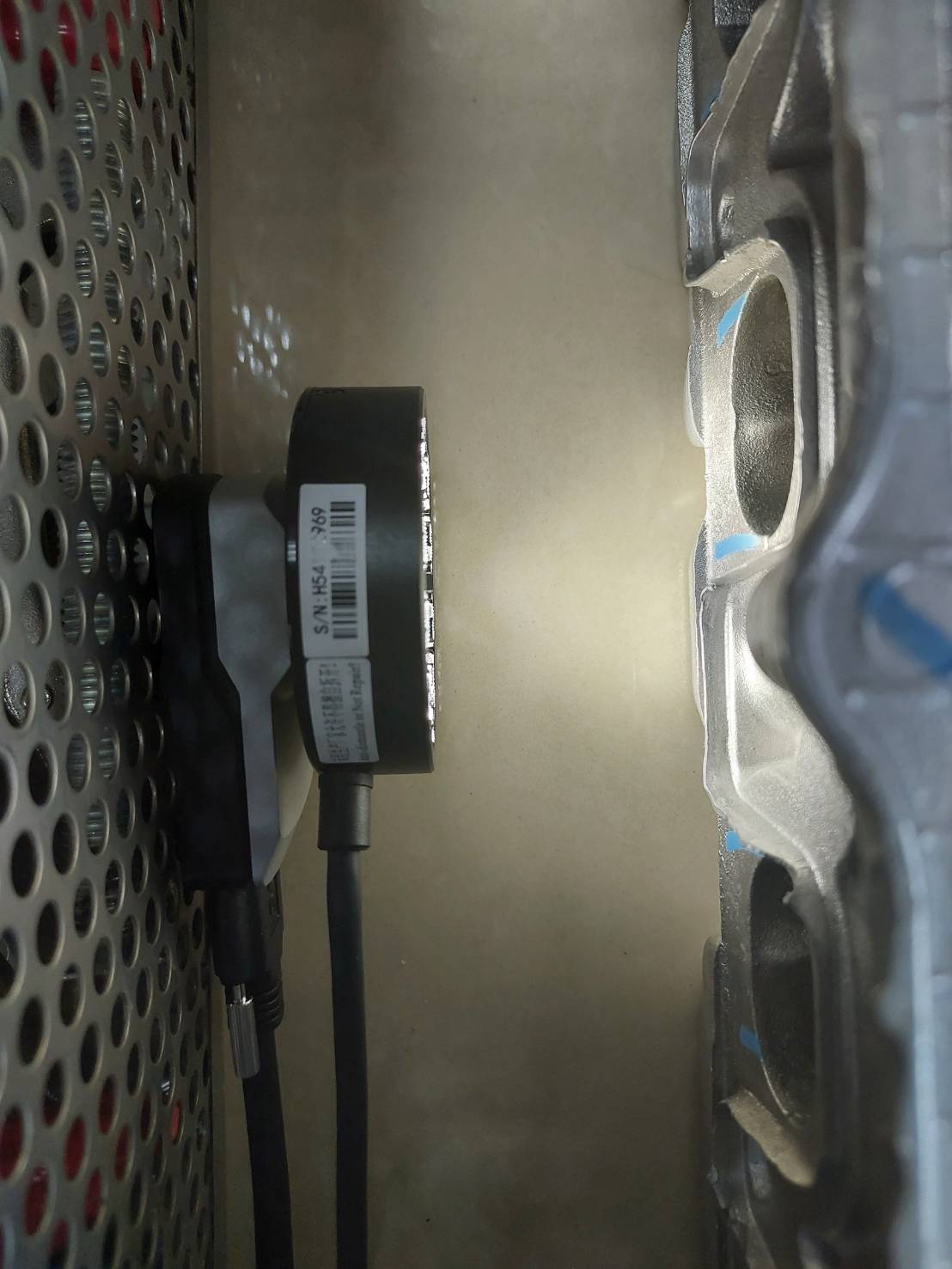

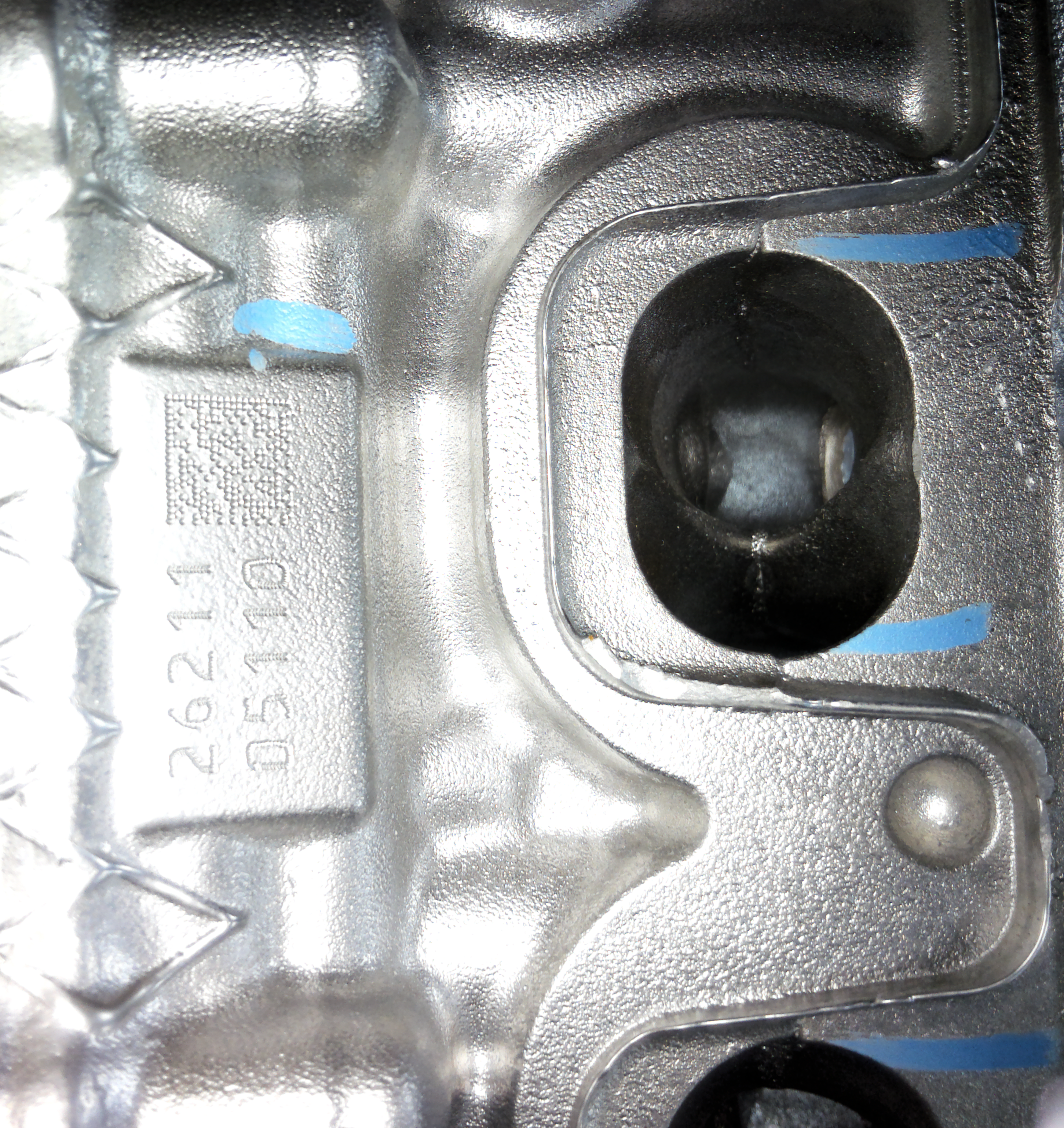

Examples of use
- Download -
