HF-XA-5M series

Price

฿ 0,00

FUJINON HF-XA-5M series is designed for "4DHR" and compatible with IMX250 high performance CMOS image sensor (2/3", 5 megapixels, 3.45µm pixel pitch).

Manufacturer:

Fujinon

Availability:

In Stock

Features
Reviews

"4D High Resolution" lenses

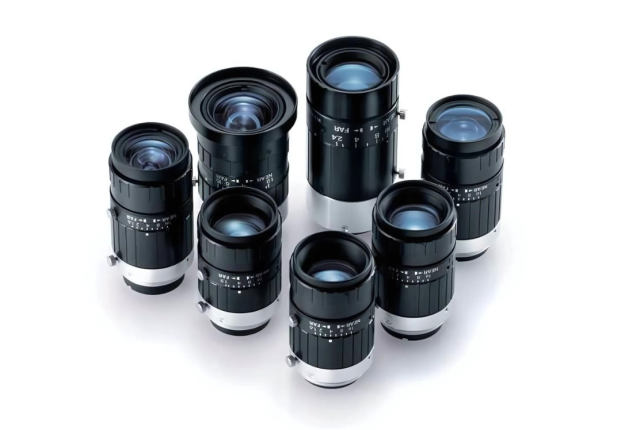

HF-XA-5M Series

Compatible with 2/3" to 1.1" (max.)
large image sensor cameras

FUJINON HF-XA-5M series is designed for "4DHR" and compatible with IMX250 high performance CMOS image sensor (2/3", 5 megapixels, 3.45µm pixel pitch).

Main features

Minimizing degradation of resolution even when the shooting distance or aperture is changed

[photo] 4D lens versus general machine vision camera - zoomed in snippets of text chart with highly consistent image sharpness even along the edges compared to resolution degradation

General machine vision camera lenses exhibit problematic degradation of resolution when the shooting distance or aperture is changed. FUJINON HF-XA-5M features high performance "4D HR" to minimize such degradation.
It maintains a highly consistent image sharpness from the center to the edges, while mitigating degradation of resolution caused by changes in the shooting distance or aperture. This enables consistent delivery of high-resolution images under a wide variety of installation and shooting conditions.

Anti-shock & vibration design

Our unique mechanical design* realizes anti-shock and vibration performance compatible with various installation environments.

* Patent Pending

* Only the HF6XA-5M and HF50XA-5M are equipped with Anti Shock & Vibration.

[photo] Lenses being tested on plates of vibration machine

【Compliant with IEC60068-2-6】

Vibration frequency of 10-60Hz (amplitude of 0.75mm), 60-500Hz (acceleration of 100m/S2)
Sweep frequency of 50 cycles

Compact design

[photo] Small machine vision camera with HF-XA-5M series lens attached

Despite being high resolution lenses, the HF-XA-5M series is the best for use with small machine vision cameras.
6mm：φ39mm
8mm/12mm/16mm/25mm/35mm：φ29.5mm
50mm：φ33mm

Selectable three locking holes

FUJINON HF-XA-5M series comes with three locking holes each for the iris and focus. They are located on the lens barrels, allowing you to select the optimum holes for your needs.

HF-XA-5M series specification sheet

Model	Compatible format sizes								Focal length (mm)
Model	4/3	1.1	1	1/1.2	2/3	1/1.8	1/2	1/3	Focal length (mm)
HF6XA-5M	－	－	－	－	●	●	●	●	6
HF8XA-5M	－	－	－	－	●	●	●	●	8
HF12XA-5M	－	－	－	○	●	●	●	●	12
HF16XA-5M	－	－	－	○	●	●	●	●	16
HF25XA-5M	－	－	－	○	●	●	●	●	25
HF35XA-5M	－	－	－	○	●	●	●	●	35
HF50XA-5M	－	○	○	○	●	●	●	●	50
