MVL -FUJINON Lenses

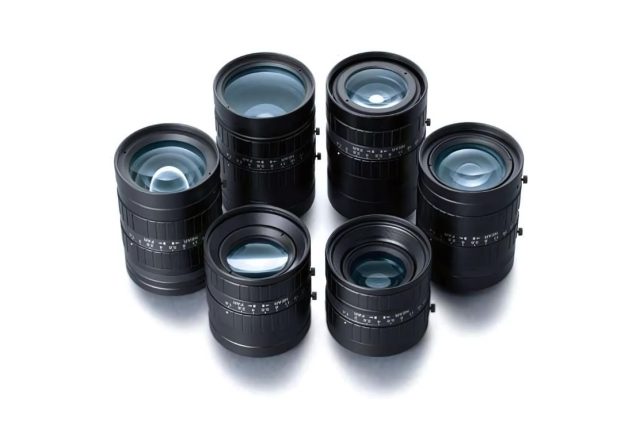

HF-SA series

HF-SA series

Price
฿ 0,00

FUJINON HF-SA series is designed to achieve high resolution up to 5 megapixels (3.45µm pixel pitch) compatible with 2/3" sensors.

Manufacturer:
Fujinon
Availability:
In Stock



High resolution lenses



HF-SA Series

FUJINON HF-SA series is designed to achieve high resolution up to 5 megapixels (3.45µm pixel pitch) compatible with 2/3" sensors.



Main features

Low distortion

FUJINON HF-SA series thoroughly minimizes distortion which causes problems in applications requiring high accuracy such as dimension measurement.

[image] Grid view of General MV lens only with spherical lenses and MV lens with an aspherical lens
  • * Simulated image

High performance in close-up shooting

The rear focusing method*1 enables high performance even in close-up shooting.

  • *1 HF12.5SA-1 and HF16SA-1

Low F-number

The low F-number up to F1.4 ensures a clear image even in low light situations.

Enough peripheral light amount

Enough light is captured even at the edges of the image, which contributes to stable inspection accuracy.



HF-SA series specification sheet
Model Compatible format sizes Focal length
(mm)
4/3 1.1 1 1/1.2 2/3 1/1.8 1/2 1/3
HF12.5SA-1 － － － － ● ● ● ● 12.5
HF16SA-1 － － － － ● ● ● ● 16
HF25SA-1 － － － － ● ● ● ● 25
HF35SA-1 － － － － ● ● ● ● 35
HF50SA-1 － － － － ● ● ● ● 50
HF75SA-1 － － － － ● ● ● ● 75
HF50HA-1S
(HF50HA-1B)		 － － － － ● ● ● ● 50
HF75HA-1S
(HF75HA-1B)		 － － － － ● ● ● ● 75
