CF-HA series
Price
฿ 0,00
FUJINON CF-HA series is compatible with large 1" image sensor cameras to realize high resolution up to 1.5 megapixels (7.4 pixel pitch).
Manufacturer:
Availability:
In Stock
High resolution lenses
CF-HA Series
FUJINON CF-HA series is compatible with large 1" image sensor cameras to realize high resolution up to 1.5 megapixels (7.4 pixel pitch).
Main features

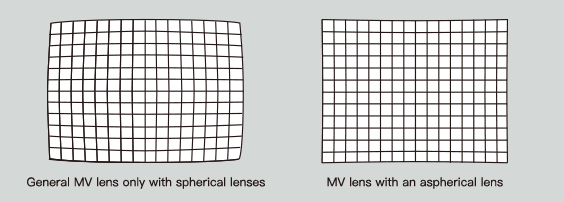

Low distortion
FUJINON CF-HA series thoroughly minimizes distortion which causes problems in applications requiring high accuracy such as dimension measurement.
![[image] Grid view of General MV lens only with spherical lenses and MV lens with an aspherical lens](https://asset.fujifilm.com/www/th/files/2024-04/14600df17e19541de62aff149a75c5f3/fig_mvlens_01.gif)
- * Simulated image
High performance in close-up shooting
The rear focusing method*1 enables high performance even in close-up shooting.
- *1 CF12.5HA-1 and CF16HA-1
Low F-number
The low F-number up to F1.4 ensures a clear image even in low light situations.
Enough peripheral light amount
Enough light is captured even at the edges of the image, which contributes to stable inspection accuracy.
CF-HA series specification sheet
| Model | Compatible format sizes | Focal length (mm) |
|||||||
| 4/3 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | ||
| CF12.5HA-1 | － | － | ● | ● | ● | ● | ● | ● | 12.5 |
| CF16HA-1 | － | － | ● | ● | ● | ● | ● | ● | 16 |
| CF25HA-1 | － | － | ● | ● | ● | ● | ● | ● | 25 |
| CF35HA-1 | － | － | ● | ● | ● | ● | ● | ● | 35 |
| CF50HA-1 | － | － | ● | ● | ● | ● | ● | ● | 50 |
| CF75HA-1 | － | － | ● | ● | ● | ● | ● | ● | 75 |
