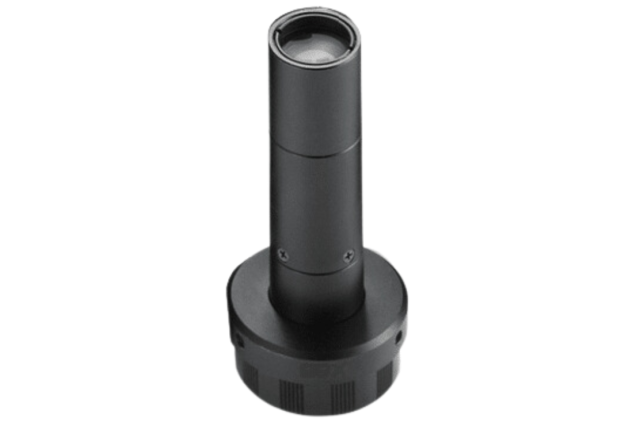

MVL-TC8-65
- Compact size and light weight
- Wide range of WD from 40mm～340mm
- Variety of magnifications 0.5x～10x : 1.5x / 3.0x / 5.0x also available
- Built-in Co-axial models
| Model |
|
MVL-TC8-65 |
| Optical Mag. |
|
×8.0±5% |
| FOV (VxH) |
2/3" |
0.9×1.1mm |
| |
1/2" |
0.6×0.8mm |
| |
1/3" |
0.5×0.6mm |
| WD |
|
64.0mm±2 |
| O/I (Object & Imager Distance) |
|
177.0 mm |
| Working F/# |
|
57.1 |
| NA |
|
0.07 |
| DOF at PCoC φ0.04mm |
|
0.07mm |
| TV distortion (max.) |
|
0.00 % |
| Relative illuminance(Y=5.5) |
|
100 % |
| Wavelength |
|
Visible (400nm - 700nm) |
| Camera Mount |
|
C-mount |
| Flange Back |
|
17.526 mm |
| Sensor size (max.) |
|
2/3" |
| Co-axial prism |
|
- |
| Weight (approx.) |
|
48g |
| Dimension |
|
Φ 31 (MAX) × L=95.5 mm |
