MVL-C3X45-5M

Price

฿ 0,00

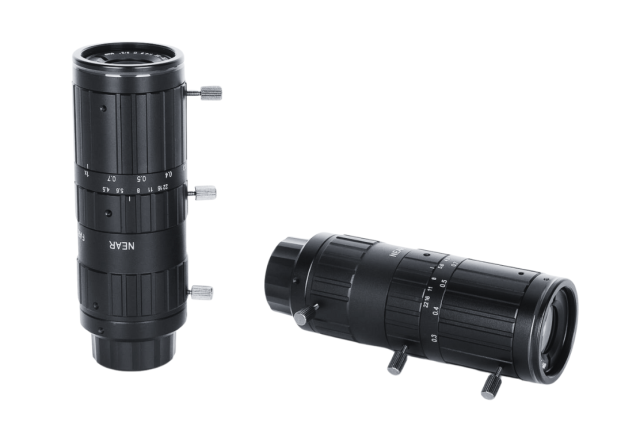

SWIR lens 0.3x - 0.1x, 2/3" sensor

Manufacturer:

SSG

Availability:

In Stock

Features
Reviews

SWIR Lens 0.3x - 0.1x

Product Features
◆Adjustable magnification: 0.3X - 1.0X
◆Large image circle, max compatible with 2/3" sensor
◆Up to 120 lp/mm resolution
◆High uniformity
◆Total distortion < 0.5%

Model	OPT-C3X45-5M
Working Distance(mm)	87±3%
Aperture(F/#)	F4.5~F22
Magnification（X）	0.3X-1.0X
Image Circle Ø(mm)	11
Sensor Format	1/2″ 2/3″
Distortion	0.26%@0.3X, 0.25%@1.0X \| 0.49%@0.3X, 0.47%@1.0X
Max. Field Of View（H*V）	21.3×16.0 @ 6.4×4.8 \| 29.3×22.0 @ 8.8×6.6
Mount	C-Mount
Weight(kg)	0.2
Filter Thread	M30.5×0.5-6H

PCB locating and recognition

Tool inspection

Dimensions
