The modular and flexible 3D camera system

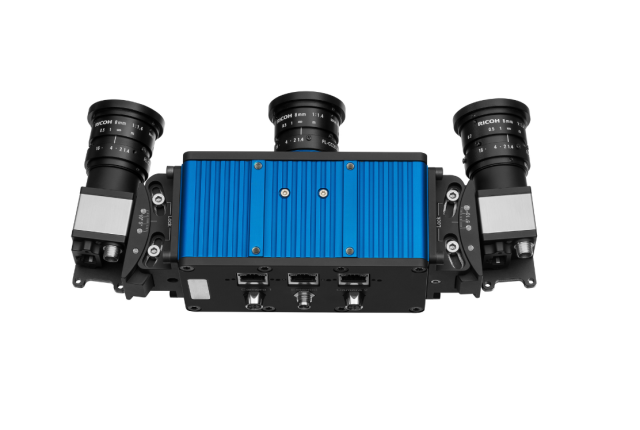

The Ensenso X series is a modular and ultraflexible 3D camera system. The projector module with 100 W LED projector power is equipped with an integrated Gigabit Ethernet switch and can be combined with selected GigE uEye camera models to a customised 3D camera system.

The camera mounting brackets are available in a range of widths to allow for the implementation of base lines with different sizes. You can also configure the camera's angle of view and choose between various C-mount lenses with different focal lengths for the camera and projector. This flexibility facilitates a wide range of working distances of more than 5 metres, allowing you to capture objects with volumes of several cubic metres, e.g. heavily-laden pallets or entire rooms. You can choose between camera models with 1.6 megapixel or 5 megapixel resolution for an even greater field of view and a higher level of detail.

For particularly high demands on robustness, the Ensenso X30 and Ensenso X36 3D camera systems are optionally available with IP65/67 and therefore protected against dirt, dust, water splashes or cleaning agents as well as accidental shifting of the optics.

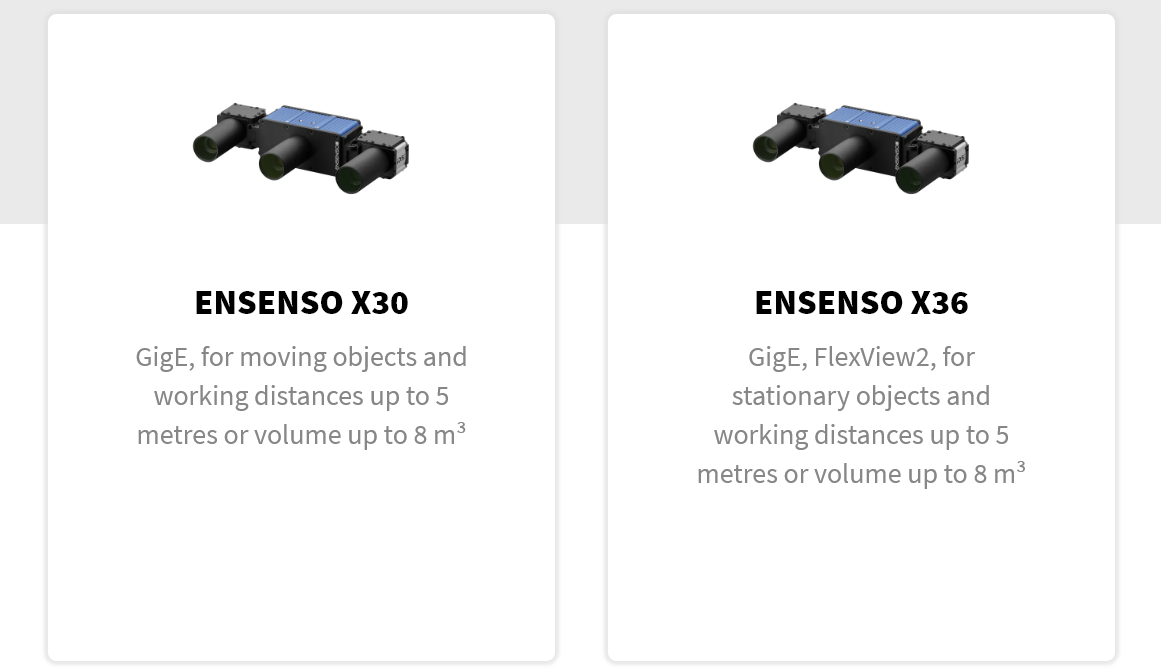

Ensenso X30

GigE, for moving objects and working distances up to 5 meter or volume up to 8 m³

Description

Each Ensenso X30 3D camera system consists of a projector unit, two GigE uEye cameras either with 1.6 MP or 5 MP sensors (CMOS, monochrome), mounting brackets and adjustment angles, three lenses as well as sync. and patch cables to connect the camera with the projector unit. You can choose between variants with protection class IP30 (Ensenso X36 CP) or IP65/67 (Ensenso X36 FA). The latter also include, in addition to special cables, lens tubes for the cameras and the projector.

Note:

The 3D systems are delivered mounted and pre-calibrated. The focusing and calibration is set up and handled easily with the integrated Setup-Wizard in the EnsensoSDK.

Applications

• 3D object recognition, classification & localization, e.g. quality assurance, commissioning
• 3D object reconstruction
• Factory automation
• Capture of objects up to 8 m³, e.g, enitre rooms, pallets
• Robot applications, e.g. bin picking
• Conveyor belt picking
• Logistics automation. e.g. (De-)Palletizing
• Automatic storage systems

Ensenso X36

GigE, FlexView2, for stationary objects and working distances up to 5 meter or volume up to 8 m³

Description

Each Ensenso X36 3D camera system with FlexView2 technology consists of a projector unit, two GigE uEye cameras either with 1.6 MP or 5 MP sensors (CMOS, monochrome), mounting brackets and adjustment angles, three lenses as well as sync. and patch cables to connect the camera with the projector unit. The FlexView2 technology ensures a better spatial resolution as well as a very high robustness of the system for dark or reflecting surfaces. You can choose between variants with protection class IP30 (Ensenso X36 CP) or IP65/67 (Ensenso X36 FA). The latter also include, in addition to special cables, lens tubes for the cameras and the projector.

Note:

The 3D systems are delivered mounted and pre-calibrated. The focusing and calibration is set up and handled easily with the integrated Setup-Wizard in the EnsensoSDK.

Applications

• 3D object recognition, classification & localization, e.g. quality assurance, commissioning
• 3D object reconstruction
• Robot applications, e.g. bin picking
• Capture of objects up to 8 m³, e.g, enitre rooms, pallets
• Logistics automation. e.g. (De-)Palletizing
• Factory automation
• Automatic storage systems
