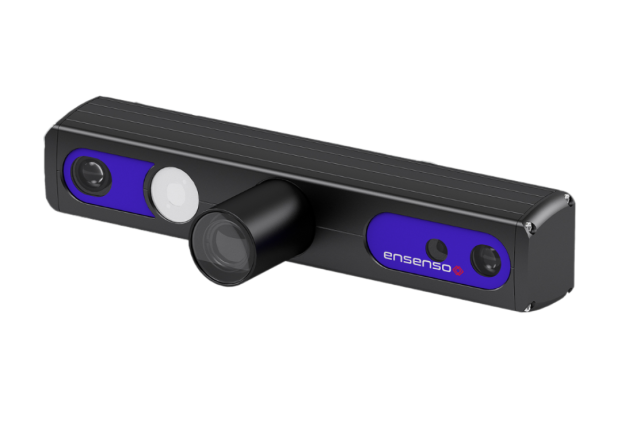

Ensenso C series
- RGB sensor for additional processing of colour information
- High-luminosity LED pattern projector with 200 W power output
- All components fully integrated in compact housing
- Robust against shock and vibes
- Large baselines for working distances up to 5 m or volumes up to 8 m³
- Tailor-made and "ready to use" by factory
The next step for 3D cameras
Without compromise, the new C series combines all Ensenso advantages in the 3D vision environment. Digital twins can finally also distinguish colour. Despite simplified handling and a more compact design, voluminous applications benefit from higher reproducible Z-accuracy and more light output from the projector electronics. And the more uniform housings of the available model variants also enable a higher cost efficiency in the 3D upper class.
Readymade models

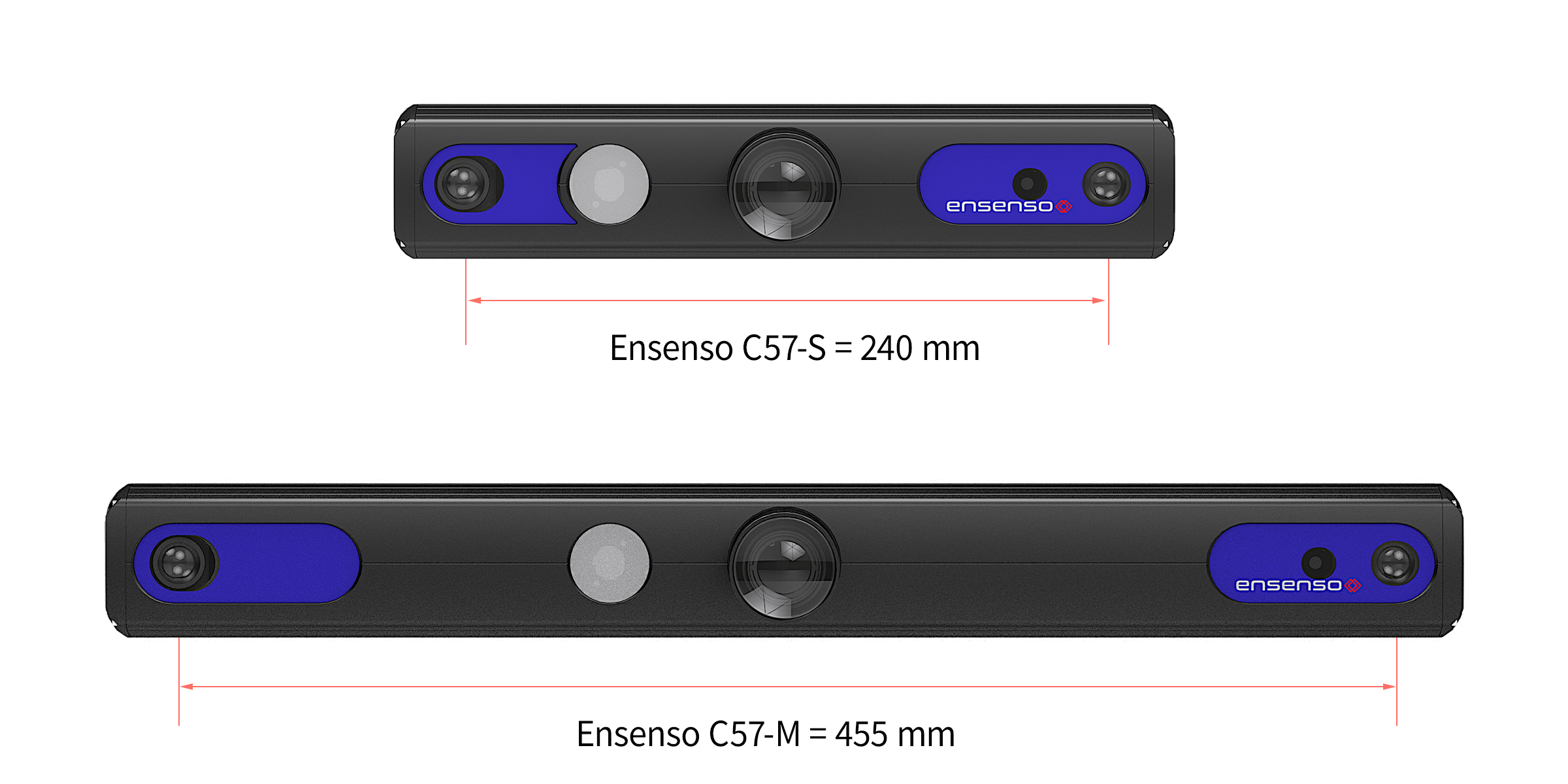

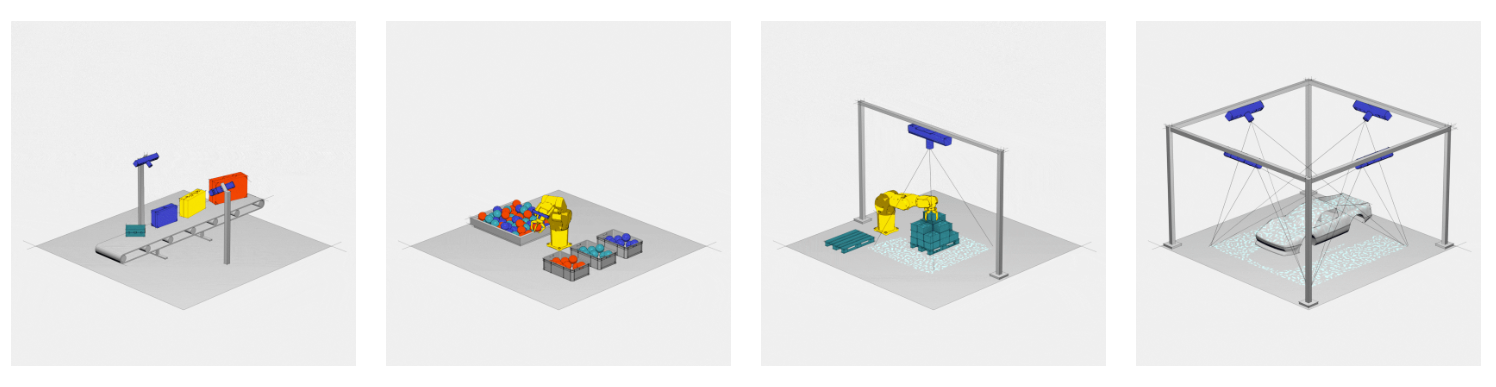

Immediately applicable at any working distance Various model variants with alternative baselines (distance of the stereo cameras: S: 240 mm, M: 455 mm) and focal lengths are available for various application scenarios. The coordinate systems of the stereo and RGB cameras are fully calibrated against each other. In addition, all lenses, including the pattern projector, are factory preset to the field of view and working distance of the respective model, thus facilitating handling and commissioning.

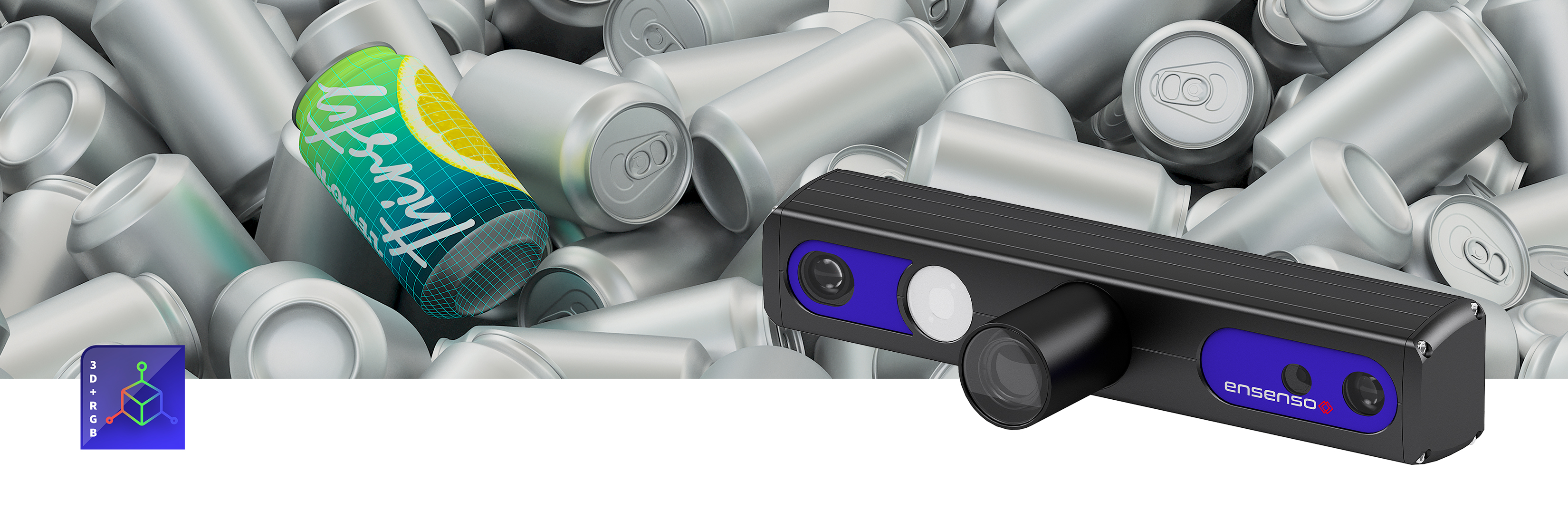

Fully integrated RGB sensor
Colour vision is not a privilege, but a desirable quality
The additional RGB sensor generates texture data that supplements the 3D point cloud with true colour information, thus ensuring realistic 3D images. This makes it easier to distinguish coloured objects for subsequent processes.
Compact and robust
Fully enclosed housing without corners and edges
Due to the extremely compact design, all internal components of the C-Series are optimally protected against all external influences according to IP65/67 and are even more resistant to vibrations and shocks.
200 watt projector
The new optimized design of the C-Series enables highly efficient operation of the projector electronics with up to 200 watt power. This results in exceptionally high luminosity of the new FlexView3 Pattern, improving pattern contrast on objects even at long distances.
Z-noise < 0.1 mm
With a large baseline and small field of view, the M models (455 mm) achieve a reproducible Z accuracy of 0.1 mm at 1 m object distance. The optimized housing design minimizes temperature-related deviations of the depth values to a minimum (e.g.: 0.075 mm deviation at 30 cm distance and 10°C temperature change).
