Key Features:
- High performance in a compact package: Improve throughput and productivity across a variety of applications using industry-leading 1D/2D algorithms and uniform lighting.
- Robust reading: Operate in the most challenging code-reading environments with dynamic auto-focus and advanced high dynamic range imaging.
- Out-of-the-box functionality: Unbox, install, and decode with fast, intuitive deployment even for specialized applications.
- Flexible connectivity and communications: increase efficiency and exchange information faster using 1gigabit/second Ethernet, rapid image offload, easy data management, and multi-reader sync.
- AI-enabled tuning: AI tuning allows for fast setup on challenging applications.
| DataMan 280 | DataMan 282 | |
|---|---|---|
| Algorithms and Technologies | 1DMax, 2DMax, Hotbars, PowerGrid | |
| Image Sensor | 1/3" CMOS | 1/2.8" CMOS |
| Image Sensor Properties | Diagonal 6.21 mm, 3.45 μm square pixels | Diagonal 6.17 mm, 2.8 μm square pixels |
| Image Resolution | 1440 x 1080 pixels | 1920 x 1080 pixels |
| Electronic Shutter Speed | Min. exposure: 29 μs Max. exposure: Up to 10 ms (internal illumination) / Up to 200 ms (external illumination) |
|
| Acquisition | Up to 45 Hz | |
| Lens Options | 6.2 mm or 16 mm High Speed Liquid Lens | 8 mm, 12 mm, or 16 mm High Speed Liquid Lens |
| Trigger and Tune Buttons | Yes, with Quick Setup Intelligent Tuning | |
| Aimer | 2 LEDs | Laser cross pattern (class 2) |
| Discrete Inputs | 2 opto-isolated, 2 configurable | |
| Discrete Outputs | 2 opto-isolated, 2 configurable | |
| Other I/O Points | 2 user configurable as inputs or outputs | |
| Status Outputs | 5 status LEDs, audible beeper, 2 visual indicator lights | 5 status LEDs, audible beeper, 2 visual indicator lights, 4 HPIT light color options |
| Lighting | Standard: 4 LED lights for 6.2mm lens (red, blue, white, IR, and UV options) HPIL: 4 LED high-powered lights for 16 mm lens (red, white options) Optional bandpass filters. Front cover options: polarized/half-polarized and clear. | HPIT: 4 multi-color LED lights (red, green, blue, and white) Optional bandpass filters. Front cover options: clear, diffused, polarized and dome. |
| Communications | Serial and 1 GB/second Ethernet interface, USB-C, and keyboard capability | |
| Protocols | RS-232, TCP/IP, PROFINET(class B), EtherNet/IP™, SLMP, Modbus TCP, NTP, SFTP, FTP, MRS, CC-Link Java Scripting enabled for custom protocols |
|
| Power | 24V +/- 10% PoE (Power over Ethernet) |
24V +/- 10% |
| Power Consumption | ≤7.5W | |
| Material | Zinc alloy/aluminum | |
| Weight | 6.2 mm: 141 g; 16 mm: 169 g Right angle configuration adds 50 g |
290 g Right angle configuration adds 50g |
| Dimensions | Straight configuration 6.2 mm: 75.5 x 42.4 x 23.6 mm Straight configuration 16 mm: 90.6 x 42.4 x 23.6 mm Right angle configuration 6.2 mm: 78.5 x 42.4 x 37.8 mm Right angle configuration 16 mm: 78.5 x 42.4 x 52.9 mm |
|
| Operating Temperature | 0–40 °C (32–104 °F) | |
| Storage Temperature | -10–60 °C (14–140 °F) | |
| Operating and Storage Humidity | <95% non-condensing | |
| Protection | IP67 | |
| RoHS Certified | Yes | |
| Approvals | EU [CE], US [FCC], TUV, CB, NRTL, IEC 61010, Korea [KCC], India [BIS] | |
Solve tough manufacturing and logistics applications

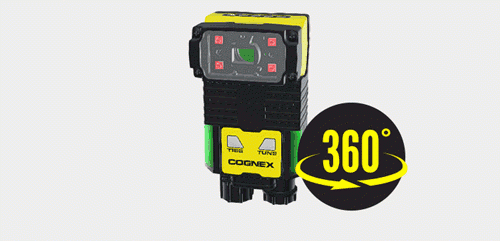

DataMan 280 series are versatile barcode readers that can adapt to virtually any manufacturing or logistics environment and solve a variety of code-reading challenges. DataMan 280 series barcode readers provide unprecedented read rates on 1D and 2D label-based codes and DPMs.
The reader’s ability to decode difficult DPMs, label-based codes, and operate in hands-free scanning situations can assist a variety of facilities increase throughput, streamline workflows, and achieve greater efficiency.
Take your operations to the next level with advanced reading and imaging technology
DataMan 280 readers leverage patented decoding algorithms and imaging technology to improve efficiency and throughput by maintaining high read rates in poor lighting environments and when codes are damaged.
High Dynamic Range (HDR) technology enhances image quality and contrast to improve code handling and enable greater coverage for better efficiency. High-speed Liquid Lens Technology (HSLL) dynamically autofocuses without any mechanical parts, enabling the reader to solve high-speed, high-variability applications with ease.
High-Powered Integrated Torch (HPIT): Enhanced code reading with a single click
Cognex’s high-powered integrated torch (HPIT) enables operators to toggle between red, white, blue, and green lighting options. This ensures users have the right lighting for the right application by providing optimal contrast, no matter the operating environment. Multicolor lighting can also serve as a performance indicator, delivering immediate color-coded operator feedback.
Simplify setup and deployment real-time performance monitoring with Edge Intelligence
DataMan 280 series readers combined with Cognex Edge Intelligence (EI) transform big data into smart data to improve overall equipment effectiveness and throughput. EI allows users to configure multiple devices simultaneously, facilitating immediate system performance monitoring and analysis. The technology informs users when issues occur, allowing operators to identify and resolve root causes faster using powerful analytics and image view tools.
