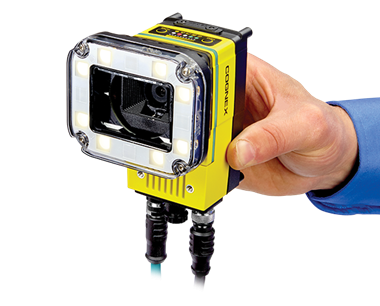

In-Sight D900 Vision System
Solve the most challenging vision applications with AI-based automation
The In-Sight® D900 vision system automates complex applications that are too difficult to deploy with traditional, rule-based machine vision and require reliable, fast, and consistent results not possible with human inspection. Embedded with a full suite of both edge learning and deep learning tools, In-Sight D900 solves a range of tasks from defect detection to assembly verification and optical character recognition (OCR). Processing takes place on-device, which eliminates the need for a PC, simplifying application deployment and bringing the power of artificial intelligence (AI) to non-programmers.
Read challenging characters and text in minutes
The In-Sight D900 deciphers badly deformed, skewed, and poorly etched codes using optical character recognition. Equipped with a pre-trained font library, the read tool works right out of the box, drastically reducing development time. Simply define the region of interest and set the character size. In situations where new characters are introduced, the tool can be easily retrained to read application-specific characters.
Perform fast and accurate assembly verification
The In-Sight D900 uses AI to reliably detect complex features and objects and verifies parts and kits are assembled correctly based on their location within a pre-defined layout. The check tool can be trained to recognize an extensive number, and variety, of components, which can be located in the image even if they appear at different angles or vary in size.
Detect and analyze subtle defects
The detect tool embedded within the In-Sight D900 is ideal for finding anomalies on complex parts and surfaces, even in situations where defects can be unpredictable in their appearance.
| D905M | D905C | D902M | D902C | ||
|---|---|---|---|---|---|
| Image Type | Monochrome | Color | Monochrome | Color | |
| Imager Type | 2/3 inch CMOS (3.45 μm x 3.45 μm pixels) | 1/2.3 inch CMOS (3.45 μm x 3.45 μm pixels) | |||
| Resolution (pixels) | 5 MP 2448 x 2048 |
2.3 MP 1920 x 1200 |
|||
| Acquisition Speed (Max) | 26 fps | 16 fps | 51 fps | 34 fps | |
| Memory | File storage | 16 GB non-volatile flash memory; unlimited storage via remote network device | |||
| Processing | 3 GB SDRAM | ||||
| Additional Storage | 8 GB micro SD card, network drive via FTP over gigabit network | ||||
| Optics | Lenses | C-Mount, S-Mount, Autofocus | |||
| Indicator LEDs | SD card status, pass/fail LED and 360° viewing indicator ring, network LED, and error LED | ||||
| Lighting | External lights via light control connector | ||||
| I/O | Network | Gigabit Ethernet (10/100/1000 Mbps) | |||
| Built-in | 1 dedicated trigger IN, 1 general purpose IN, 2 general purpose OUT, 2 bi-direction IN/OUT | ||||
| Mechanical | Industrial M12 Connectors | Power/IO; Ethernet; External light power/control | |||
| Dimensions | 53.4 mm (2.10 in) x 60.5 mm (2.38 in) x 121.0 mm (4.77 in) | ||||
| Weight | 380 g (13.4 oz.) | ||||
| Protection | IP67 with C-mount lens cover or integrated light connected | ||||
| Power | 24 VDC | ||||
